Description
⚙️ 7th-Gen Engineering, True Lossless DP Processing
Designed with Baan’s latest 7th-gen DP fusion architecture, this fuser uses upgraded high-bandwidth processors and premium PCB materials to deliver native, uncompressed DisplayPort output at extreme refresh rates
Whether running 4K, 1440p, or high-Hz 1080p, the BAAN Fuser preserves every pixel with zero compression, zero false frames, and no artificial smoothing, maintaining a perfect 1:1 signal.
🎯 High-Performance Dual DP 1.4 Switcher
Built as a seamless, flicker-free 2-in-1 DisplayPort 1.4 switcher, the BAAN 7th-Gen Fuser allows two PCs to connect to one display — switching instantly with no black screen, no handshake delay, and no signal dropout.
Maximum Supported Refresh Rates (8bpc / Full DP 1.4 Path):
- 1080p (1920×1080): Up to 500Hz
- 1440p (2560×1440): Up to 260Hz
- 4K (3840×2160): Up to 144Hz
The device supports YCbCr 4:2:2 at 8-bit, adaptive EDID handling, and uses an ultra-quiet cooling fan to ensure silent, stable long-term operation
Note: Custom resolutions and 3440×1440 ultrawide are not supported.
💻 Optimized Compatibility & Plug-and-Play Setup
The 7th-gen BAAN Fuser is built for universal DP 1.4 workflows — supporting most modern monitors and GPUs without the need for manual configuration.
Its updated firmware improves:
- EDID stability
- Multi-PC switching reliability
- High-Hz output consistency
- GPU compatibility across both Nvidia and AMD
Just power it on, connect both PCs, and the system configures itself instantly.
📊 Performance Capabilities
The BAAN 4K Fuser maintains stable output at all official DP-supported refresh rates:
Standard Benchmarks:
- 4K @ 144Hz
- 2K @ 240Hz
- 1080p @ 480–500Hz
Color Format:
- YCbCr 4:2:2 (8-bit)
- Adaptive EDID auto-negotiation
GPU Requirements:
- Nvidia GTX 10-series or newer
- AMD RX 500-series or newer
- Secondary PC CPU: 6 threads minimum
💡 Recommended System Specs
For the most stable high-Hz output:
Main PC GPU: RTX 3070 Ti / RX 6500XT
Secondary PC GPU: RTX 3060 / RX 6500XT
Secondary PC CPU: Intel i5-12600 / Ryzen 5 5600X or better
🧱 Premium Build Quality
The BAAN DP Fuser uses a reinforced aluminum-metal enclosure designed for both thermal efficiency and long-term durability.

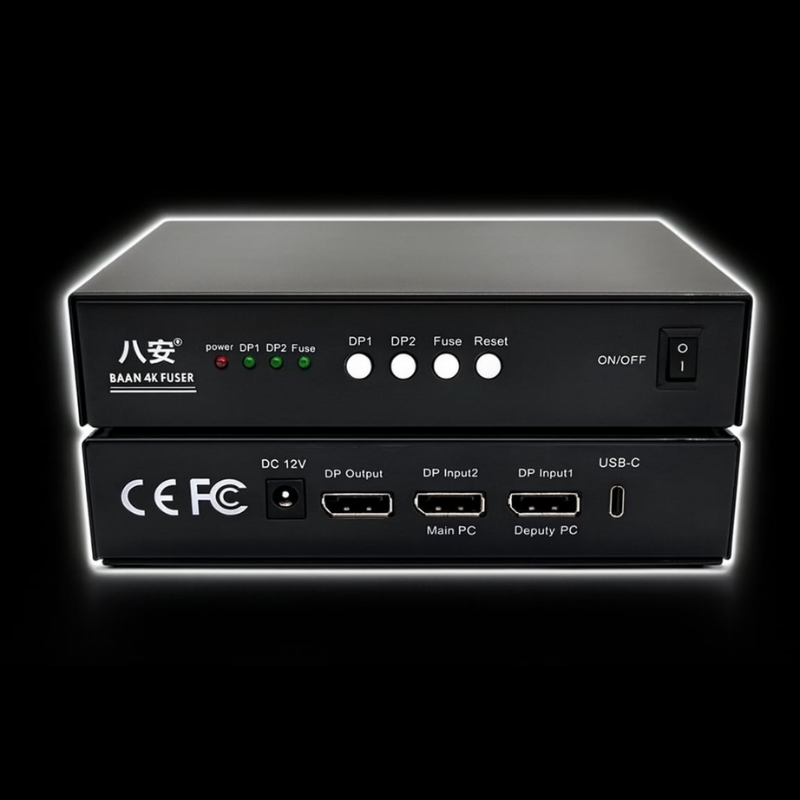

I/O Configuration:
- Input: 2 × DisplayPort 1.4
- Output: 1 × DisplayPort 1.4
- Optional HDMI 2.1 passthrough versions may vary depending on model.
Cooling is handled by an ultra-silent fan, ensuring stable operation even under 4K144 or 500Hz loads.
📦 Package Contents
- 1 × Baan 7th-Gen 4K DisplayPort Fuser
- 1 × 12V 2A Power Adapter
- 2 × High-Quality DP Cables
- Shockproof protective packaging
📦 Shipping Information:
- Free shipping: 7-10 Business Days
- Express Shipping: ($35) 2-5 Business Days
After purchase, please create a ticket in our Discord server.
